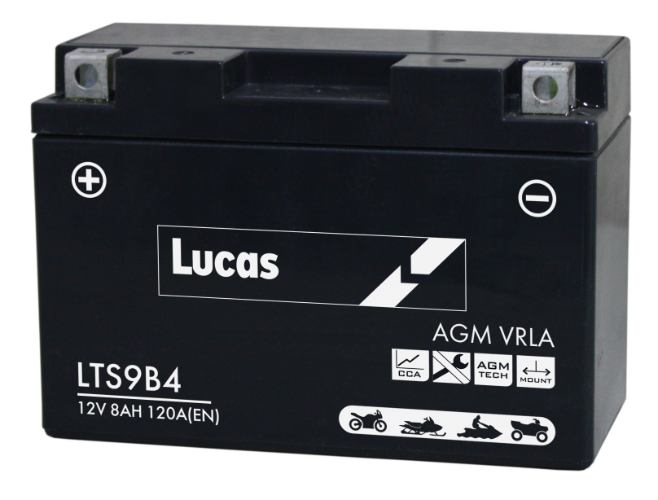

Lucas LTS9B4 AGM Motorbike Battery - 12v 8Ah, 1 Year Warranty

Original price £37.97 - Original price £37.97
Original price
£37.97
£37.97 - £37.97
Current price £37.97
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: LTS9B4

    Maintaining reliable cold-start performance on compact motorcycles, scooters and off-road machines demands a battery that can withstand vibration, discharge cycles and demanding operating conditions. The Lucas LTS9B4 is a 12V 8Ah AGM motorcycle battery engineered to meet those requirements, delivering 120 CCA (EN) in a compact, sealed format suited to a broad range of two-wheel applications. Manufactured under the Lucas Motorsport range, this battery combines absorbent glass mat technology with robust construction to provide spill-proof, maintenance-free operation. AGM separators immobilise the electrolyte, reducing internal resistance and enabling consistent power delivery across a wide temperature range. The range is built to the standard of Lucas Automotive's motorsport-grade specification, prioritising durability in motorcycle, off-road and jetski environments." The LTS9B4 measures 150mm x- 69mm - 105mm (L x- W x- H) and weighs 2.93 kg. It features Terminal Type 2 with Polarity 1 (positive terminal right) and Hold-Down type B00. No direct cross-reference codes are listed; buyers should verify fitment against OEM specifications. The product label should be consulted to confirm start-stop system compatibility before installation. "This battery is available as part of a wider Lucas Motorsport AGM range. Related variants include LTS12AA, LTS12ABS, LTS12B4, LTS12BS, LTS14AA2, LTS14B4, LTS14BS, LTS14LA2, LTS20LBS and LTS4LB, covering alternative capacities and terminal configurations for different vehicle classes." The LTS9B4 is supplied with a 1-year manufacturer warranty. " . The range of Lucas Motorsport batteries brings together a winning combination of cutting edge technology, robust design and precision engineering for motorcycle, off-road and jetski applications. The built-in qualities of exceptional starting power - up to 30% more than traditional batteries - and the high resilience to deep, repeated discharge make this range of batteries the power source of choice. Key Feature: Backed by 1-year warranty for reliable use and dependable performance. Product Group: 2250, LUCAS MOTORCYCLE BATTERY, purpose-built for dependable performance in the intended application. Engineered as a AGM Battery, delivering consistent, reliable operation in daily use. Manufactured by Lucas, a trusted name in automotive batteries, known for dependable quality. Weighs 2.9 kg (6.5 lb) balancing power and manageability for easier installation and handling. OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatible with standard vehicle electrical requirements. Compatibility: Tailored for motorcycles/2-wheelers with a compact footprint and stable voltage for dependable starts and lighting. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to AGM Battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Lucas Automotive
    • Voltage: 12V
    • Capacity AH (C20): 8Ah
    • Cold Cranking Amps (EN): 120A
    • L x- W x- H: 150mm x- 69mm x- 105mm
    • Warranty period: 1 Year
    • Weight (Kg): 2.93
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 150
    • Width (mm): 69
    • Height Inc. Terminal (mm): 105
    • Terminal Placement: 1
    • Terminal Type: 2
    • Hold Down: B00
    • Case Size:
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the voltage and capacity of the Lucas LTS9B4?
ANS- The Lucas LTS9B4 is a 12V battery with a rated capacity of 8Ah (C20) and a Cold Cranking Amp (CCA) rating of 120A measured to EN standard.

Q2- What type of battery technology does the LTS9B4 use?
ANS- The LTS9B4 uses Absorbent Glass Mat (AGM) technology. The electrolyte is suspended within glass mat separators, making the battery sealed, spill-proof and maintenance-free.

Q3- What are the physical dimensions of the LTS9B4?
ANS- The battery measures 150mm in length, 69mm in width and 105mm in height including the terminal. It weighs 2.93 kg.

Q4- What terminal type and polarity does the LTS9B4 have?
ANS- The LTS9B4 uses Terminal Type 2 with Polarity 1, meaning the positive terminal is positioned on the right-hand side. The hold-down type is B00.

Q5- Is the Lucas LTS9B4 compatible with start-stop systems?
ANS- The AGM technology used in this battery supports start-stop applications in principle. However, compatibility must be verified against the vehicle manufacturer's specification and confirmed via the product label before installation.

Q6- Are there cross-reference part numbers for the LTS9B4?
ANS- No cross-reference codes are listed for this product. Buyers should verify fitment by comparing the physical dimensions, terminal type, polarity and voltage against the OEM battery specification for their vehicle.

Q7- What is the warranty on the Lucas LTS9B4?
ANS- The LTS9B4 is supplied with a 1-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Q8- What applications is the Lucas LTS9B4 designed for?
ANS- The LTS9B4 is purpose-built for motorcycle, off-road and jetski applications. It is part of the Lucas Motorsport range, which is engineered for demanding two-wheel and powersport environments.

Q9- Are other sizes available in the Lucas Motorsport AGM range?
ANS- Yes. Related variants include LTS12AA, LTS12ABS, LTS12B4, LTS12BS, LTS14AA2, LTS14B4, LTS14BS, LTS14LA2, LTS20LBS and LTS4LB, offering alternative capacities and terminal arrangements for different applications.

Q10- What are the delivery and returns terms for the LTS9B4?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies This product ships via standard parcel service.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 1-year warranty from the date of purchase.
