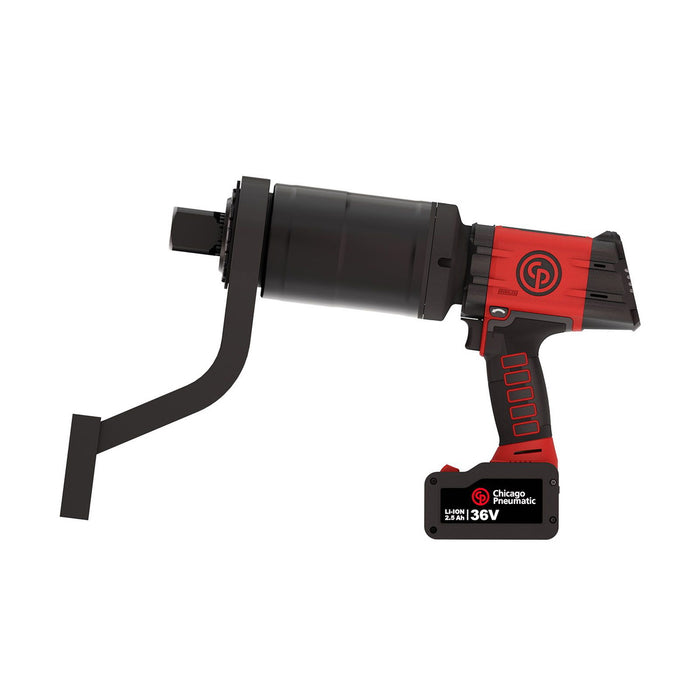

Chicago Pneumatic CP8681TC, 36V 1-1/2" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570700
The Chicago Pneumatic CP8681TC PACK delivers professional-grade cordless torque performance for technicians who demand precision and power without the constraint of an air line. This 36V 1-1/2'' battery torque wrench combines the torque output expected from a traditional pneumatic impact wrench with the freedom of a fully cordless design, making it a formidable alternative to conventional cp impact wrench solutions across heavy-duty applications. Engineered for operator comfort during extended use, the CP8681TC PACK operates at a sound pressure level of 83 dB(A) and a sound power rating of 64 dB(A), while vibration levels are kept impressively low at under 2.5 m/s², reducing fatigue during repetitive fastening tasks. The included 2.5Ah battery pack ensures extended runtime between charges, and the tool is rated for ambient storage temperatures up to 60°C, making it suitable for workshop and field environments where conditions can vary significantly. The 1-1/2'' square drive makes this an ideal choice for professionals working with large-diameter fasteners on heavy machinery, commercial vehicles, and industrial equipment — situations where a standard impact wrench simply cannot deliver the torque range required. Whether a technician is servicing agricultural equipment, maintaining construction machinery, or overhauling HGV wheel assemblies, this chicago pneumatic impact wrench provides the controlled, measurable torque output that demanding professional environments require, all packaged in a single battery-powered kit ready for immediate deployment on site.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power: 64 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 1 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 414 mm
- Width (W): 106 mm
- A: 51 mm
- B: 102 mm
- C: 203 mm
- D: 245 mm
- E: 89 mm
- F: 56 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 65 mm
- Power weight ratio: 710 Nm/kg
- Weight: 11.4 kg
- Weight without reaction arm: 11.4 kg
- Weight with reaction arm: 15.7 kg
- Max torque in forward: 8100 Nm
- Max torque reverse: 8100 Nm
- Min torque in forward: 2000 Nm
- Recommended Torque: 6480 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1-1/2
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
