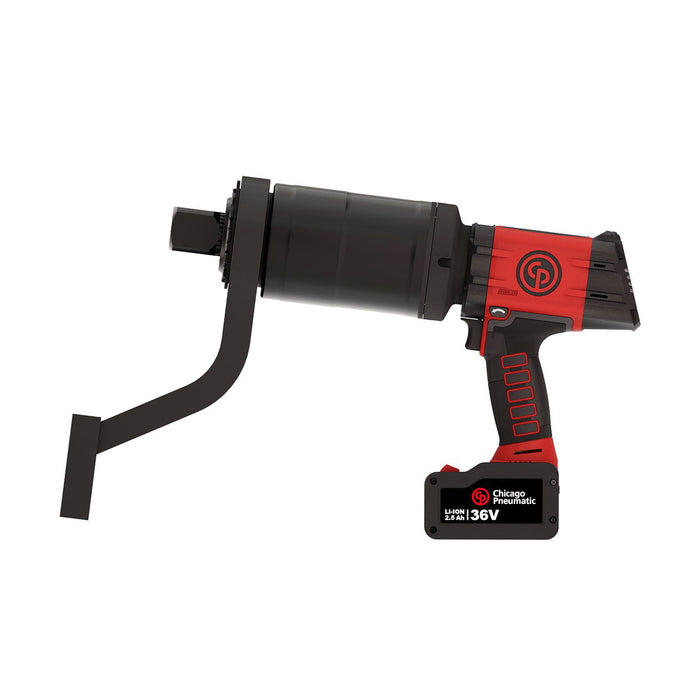

Chicago Pneumatic CP8681CQ, 36V 1-1/2" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570200
The Chicago Pneumatic CP8681CQ delivers professional-grade cordless torque performance that transforms productivity on busy workshop floors and demanding job sites alike. Engineered for technicians who need consistent, controlled fastening without the constraints of an air line, this 36V 2.5Ah battery torque wrench connect represents a significant step forward in cordless drive technology. As a genuine cp impact wrench alternative to traditional pneumatic impact wrench setups, it eliminates compressor dependency while maintaining the precision output that Chicago Pneumatic tools are renowned for globally. Measuring 11-1/2'' in length, the CP8681CQ is designed for ergonomic handling in tight engine bays and confined workshop spaces. The 36V 2.5Ah lithium-ion platform provides sustained power delivery across extended shift work, while the low vibration rating of under 2.5 m/s² ensures operator comfort throughout the working day — a critical advantage when technicians are fastening multiple assemblies in sequence. Sound power is rated at 64 dB(A) with sound pressure at 83 dB(A), keeping noise levels within manageable workplace parameters. The unit safely withstands ambient storage temperatures up to 60°C, making it dependable across varied climate conditions and storage environments. This chicago pneumatic impact wrench is the ideal solution for automotive workshops, commercial vehicle servicing, and industrial assembly operations where torque accuracy, operator safety, and cord-free flexibility are non-negotiable daily requirements.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power: 64 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 1 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 414 mm
- Width (W): 106 mm
- A: 51 mm
- B: 102 mm
- C: 203 mm
- D: 245 mm
- E: 89 mm
- F: 56 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 65 mm
- Power weight ratio: 710 Nm/kg
- Weight: 11.4 kg
- Weight without reaction arm: 11.4 kg
- Weight with reaction arm: 15.7 kg
- Max torque in forward: 8100 Nm
- Max torque reverse: 8100 Nm
- Min torque in forward: 2000 Nm
- Recommended Torque: 6480 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1-1/2
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
