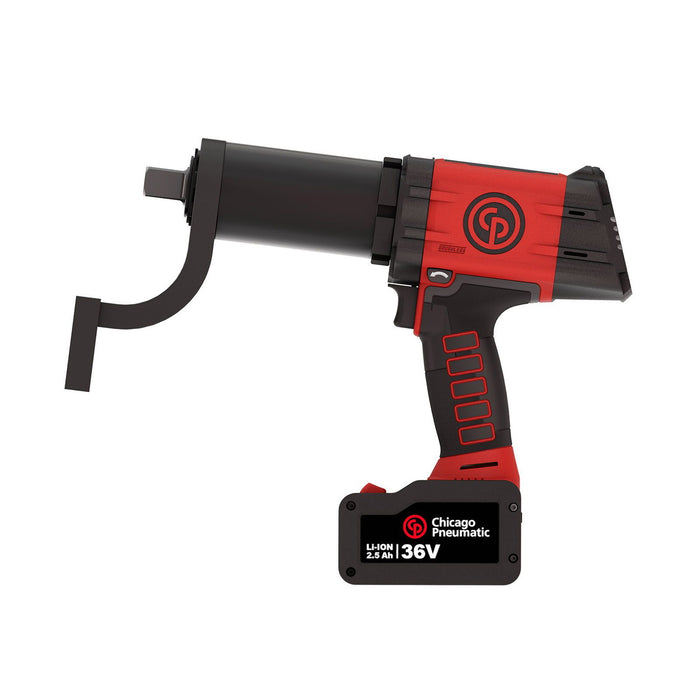

Chicago Pneumatic CP8613C, 36V 3/4" Cordless Torque Wrench

Original price £9,227.70 - Original price £9,227.70
Original price
£9,227.70
£9,227.70 - £9,227.70
Current price £9,227.70
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: 6151570010

    The Chicago Pneumatic CP8613C PACK delivers professional-grade cordless torque performance that transforms heavy-duty fastening tasks across automotive, industrial, and maintenance environments. Engineered around a robust 36V 2.5Ah battery system with a ¾-inch drive configuration, this cp impact wrench produces the kind of reliable, consistent output that demanding workshop professionals depend on daily. Operating at a remarkably low sound power level of just 72 dB(A) and a sound pressure of 83 dB(A), it stands out among chicago pneumatic impact wrench solutions by significantly reducing operator fatigue during prolonged use. Vibration levels are held to under 2.5 m/s², a specification that underscores Chicago Pneumatic's commitment to operator comfort and long-term health compliance, making it a responsible choice for fleet workshops and service centres where tools see continuous daily operation. The Connected technology integration elevates this beyond a standard impact wrench by enabling torque monitoring and tool data management, giving supervisors real-time visibility across their operations. Unlike a conventional pneumatic impact wrench tethered to a compressor, this cordless platform offers total freedom of movement across vehicle bays, field service locations, or production lines without sacrificing the torque authority professionals expect from the brand. Stored within safe ambient temperature conditions, the battery system maintains performance integrity between shifts. The CP8613C PACK is ideally suited for truck servicing, heavy equipment maintenance, and high-volume tyre operations where precision, power, and connected intelligence must work seamlessly together.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

    • Sound Power (dba): <72
    • Sound Power: 72 dB(A)
    • Sound Pressure: 83 dB(A)
    • Vibration (m/s²): <2,5
    • Max Ambient Storage Temperature: 60 °C
    • Min Ambient Storage Temperature: -20 °C
    • Battery capacity: 2.5 Ah
    • Battery type: Lithium-ion
    • Battery voltage: 36 V
    • Max Ambient Operating Temperature: 60 °C
    • Max Recommended Ambient Charging Temperature: 45 °C
    • Min Ambient Operating Temperature: 0 °C
    • Min Recommended Ambient Charging Temperature: 0 °C
    • Free Speed: 10 rpm
    • Battery Weight: 0.8 kg
    • Height (H): 285 mm
    • Length (L): 318 mm
    • Width (W): 77 mm
    • A: 32 mm
    • B: 63 mm
    • C: 130 mm
    • D: 148 mm
    • E: 89 mm
    • F: 32 mm
    • I: 116 mm
    • J: 67 mm
    • K: 76 mm
    • M: 35 mm
    • Power weight ratio: 350 Nm/kg
    • Weight: 3.7 kg
    • Weight without reaction arm: 3.7 kg
    • Weight with reaction arm: 4.5 kg
    • Max torque in forward: 1300 Nm
    • Max torque reverse: 1300 Nm
    • Min torque in forward: 300 Nm
    • Recommended Torque: 1040 Nm
    • Torque Control System: Shut-off-current control
    • Accuracy (%): ±4 %
    • Adjustment: Digital
    • Handle type: Pistol
    • Joint Type: Hard & Soft
    • Main Material type: Steel
    • Output drive size (in): 3/4
    • Output drive type: Sq
    • Output retainer type: Hole
    • Reaction bar type: S-type included
    • Reversible: Yes
    • Spline type: 0
    • Starting system: Double-trigger
    • Suspension option: Optional
  • New Grade - 24 Months Warranty from purchase is available on this product.
