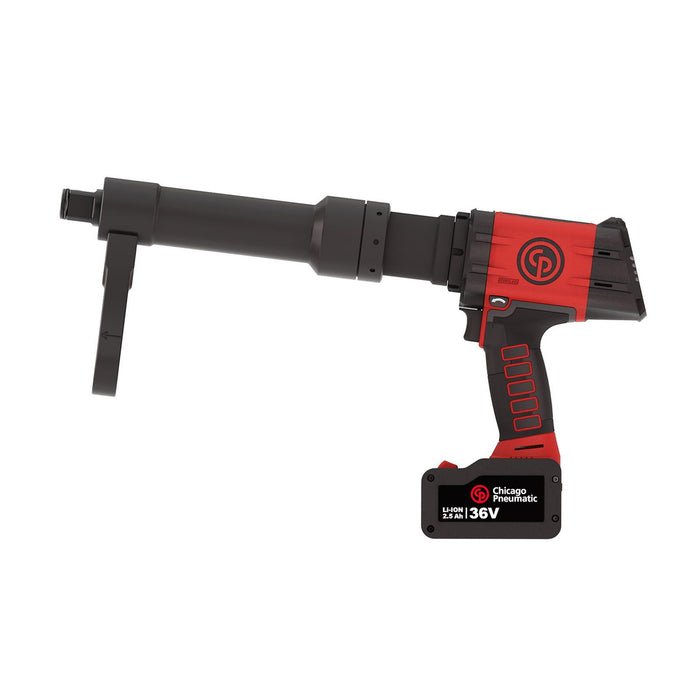

Chicago Pneumatic CP8609TC-xC, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570810
The Chicago Pneumatic CP8609TC-xC delivers exceptional cordless torque performance for professionals who demand reliability without the constraint of an air line. Engineered as a powerful 1-inch drive battery torque wrench operating on a 36V 2.5Ah platform, this tool brings the raw capability of a traditional pneumatic impact wrench into a fully cordless format, making it ideal for heavy-duty bolting applications across automotive, industrial, and maintenance environments. Operators benefit from impressively low noise levels, with a sound power rating of just 73 dB(A) and sound pressure of 62 dB(A), keeping workplace exposure well within safe limits and comfortably under the 83 dB(A) threshold. The low vibration uncertainty value of 0.6 m/s² further reflects Chicago Pneumatic's commitment to operator comfort during extended use, reducing fatigue without compromising on output. The CP8609TC-xC stands apart from conventional cp impact wrench options by combining the torque output professionals expect from a 1 air impact gun with the freedom of a cordless design. Its robust 36V architecture ensures consistent power delivery across the full charge cycle, so productivity never dips mid-shift. The included torque charger within the pack ensures fast, efficient recharging to keep downtime minimal on demanding job sites. This tool is perfectly suited for truck and bus maintenance, heavy equipment servicing, and structural steel assembly where high-torque fastening is required without access to compressed air infrastructure.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 495 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 305 mm
- D: 325 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 130 Nm/kg
- Side to Center: 33.5 mm
- Weight: 6.9 kg
- Weight without reaction arm: 6.9 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
