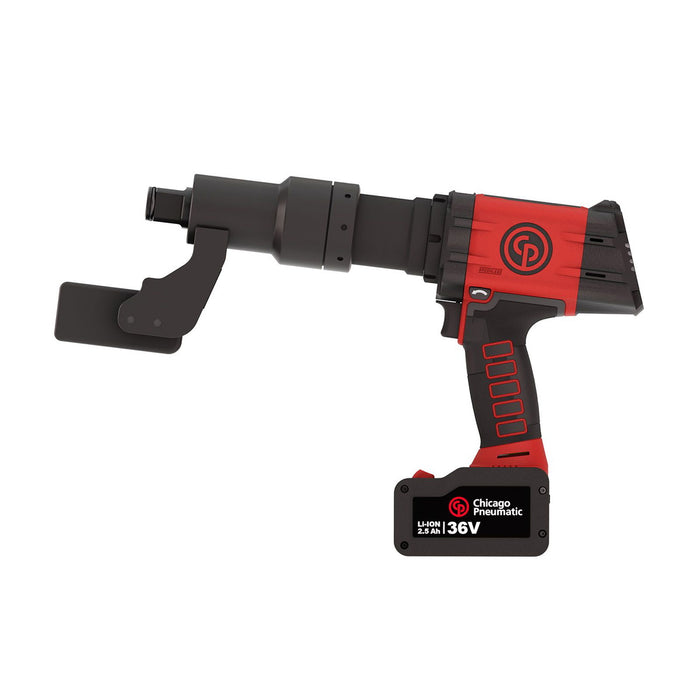

Chicago Pneumatic CP8609TC-B, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570530
The Chicago Pneumatic CP8609TC-B PACK delivers the cordless freedom and raw torque capacity that demanding professionals need when tackling heavy-duty fastening applications across construction, mining, and industrial maintenance environments. This 36V 1-inch drive battery torque wrench combines the trusted performance Chicago Pneumatic is renowned for with the convenience of a 2.5Ah lithium-ion power pack, eliminating the hose and compressor dependency that traditional pneumatic impact wrench setups require while still delivering results that rival their air-powered counterparts. Engineered with operator comfort firmly in mind, this cp impact wrench registers an impressively low sound pressure level of just 62 dB(A) and a sound power rating of 73 dB(A), well beneath the 83 dB(A) threshold, making it one of the quieter options available in the 1-inch drive class. The vibration uncertainty value of 0.6 m/s² further underscores the refined engineering behind this tool, reducing operator fatigue during extended use — a critical factor in high-volume production or all-day maintenance schedules. The robust 1-inch square drive makes the CP8609TC-B PACK ideally suited for loosening and tightening large-diameter fasteners on heavy equipment, flanges, and structural steelwork where an impact wrench with genuine torque authority is non-negotiable. Whether used as a primary tool on a busy workshop floor or deployed in remote field locations where compressed air access is impractical, this battery-driven solution from Chicago Pneumatic sets a compelling standard for cordless performance.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 150 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.8 kg
- Weight without reaction arm: 5.8 kg
- Weight with reaction arm: 6.3 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
