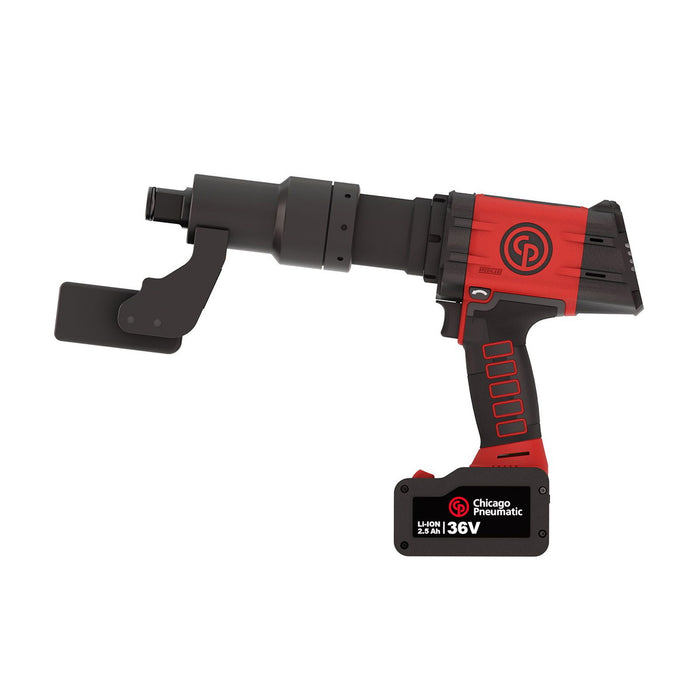

Chicago Pneumatic CP8609CQ-BT, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570460
The Chicago Pneumatic CP8609CQ-BT delivers professional-grade cordless torque control in a heavy-duty 1-inch drive format, making it an essential choice for operators who demand precision, power, and connectivity on the job. Powered by a 36V 2.5Ah battery pack, this cp impact wrench combines the muscle of a traditional pneumatic impact wrench with the freedom of a fully cordless platform, eliminating hose drag without sacrificing performance. Engineered for operator comfort, the CP8609CQ-BT keeps noise levels impressively low with a sound power rating of just 73 dB(A) and sound pressure of 62 dB(A), well within the sub-83 dB(A) threshold — a significant advantage during extended use in confined or noise-sensitive environments. Vibration is carefully managed with an uncertainty value of just 0.6 m/s², reducing fatigue across long shifts. The ''Connected'' designation means this 1 air impact gun integrates with Chicago Pneumatic's digital ecosystem, allowing torque data tracking and tool management through compatible devices — a game-changer for quality-controlled assembly environments. Built to the demanding standards that professionals expect from Chicago Pneumatic, this impact wrench delivers repeatable, traceable torque output in a robust package suited to heavy vehicle maintenance, truck fleet servicing, and industrial assembly lines where both accuracy and uptime are non-negotiable.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 150 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.8 kg
- Weight without reaction arm: 5.8 kg
- Weight with reaction arm: 6.3 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
