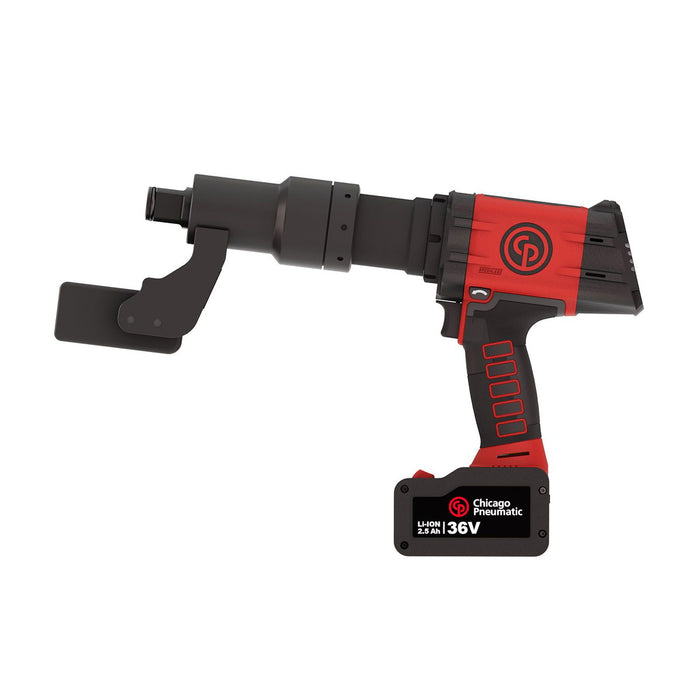

Chicago Pneumatic CP8609C-B, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570510
The Chicago Pneumatic CP8609C-B delivers professional-grade cordless torque performance in a connected 36V platform, giving technicians real-time control and precision on demanding fastening applications without the constraints of an air line. Designed as a high-output chicago pneumatic impact wrench, this 1-inch drive battery torque wrench combines intelligent connectivity with remarkably low noise levels — a sound pressure rating of just 62 dB(A) and sound power of 73 dB(A) make it one of the quietest tools in its class, significantly reducing operator fatigue during extended shifts. Powered by a robust 36V, 2.5Ah battery system, the CP8609C-B offers the sustained torque output professionals expect from a heavy-duty 1 air impact gun, while the connected functionality allows users to monitor and adjust settings via compatible devices for precise, repeatable results. The low vibration output, with an uncertainty value of just 0.6 m/s², further protects operator comfort over long working periods, meeting the standards expected of a premium cp impact wrench built for daily industrial use. Engineered for workshops, fleet maintenance facilities, and heavy equipment servicing, this cordless pneumatic impact wrench alternative is ideal for mechanics and technicians who need consistent, controllable torque on large fasteners — from truck wheel nuts and suspension components to industrial machinery — where accuracy, operator wellbeing, and job-site mobility all matter equally.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 150 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.8 kg
- Weight without reaction arm: 5.8 kg
- Weight with reaction arm: 6.3 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
