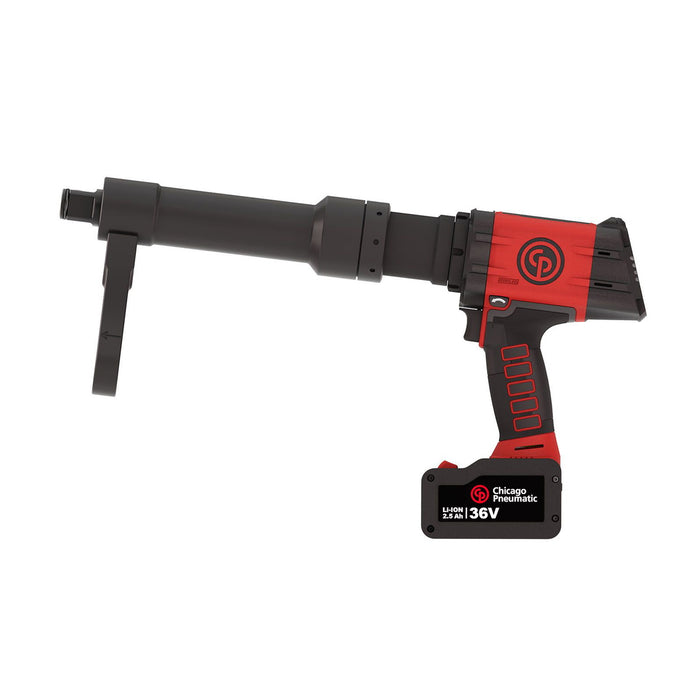

Chicago Pneumatic CP8609-xCT, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570620
The Chicago Pneumatic CP8609-xCT PACK delivers professional-grade cordless torque performance in an extended configuration purpose-built for demanding fastening applications. Powered by a 36V 2.5Ah battery platform, this 1-inch drive battery torque wrench bridges the gap between traditional pneumatic impact wrench convenience and modern cordless freedom, giving technicians unrestricted movement without sacrificing the raw power heavy-duty work demands. Operators who have long relied on a cp impact wrench for high-torque tasks will immediately appreciate the exceptionally low noise output, with sound pressure measured at just 62 dB(A) and sound power at 73 dB(A), comfortably beneath the 83 dB(A) threshold. This makes the tool significantly quieter than a conventional air impact wrench or pneumatic impact wrench, reducing operator fatigue during extended shifts and supporting safer working environments without the need for compressor infrastructure. Vibration levels are engineered to keep user exposure manageable, with an uncertainty vibration K value of just 0.6 m/s², reflecting Chicago Pneumatic's commitment to ergonomic design alongside performance. The extended anvil configuration provides enhanced reach into recessed fastener locations that standard-length tools simply cannot access effectively. This 1 inch air impact gun equivalent is ideally suited for heavy vehicle maintenance, truck fleet servicing, agricultural machinery repair, and construction equipment workshops where consistent high-torque output, operator comfort, and cordless versatility combine to maximise productivity throughout a full working day.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 495 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 305 mm
- D: 325 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 130 Nm/kg
- Side to Center: 33.5 mm
- Weight: 6.9 kg
- Weight without reaction arm: 6.9 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
