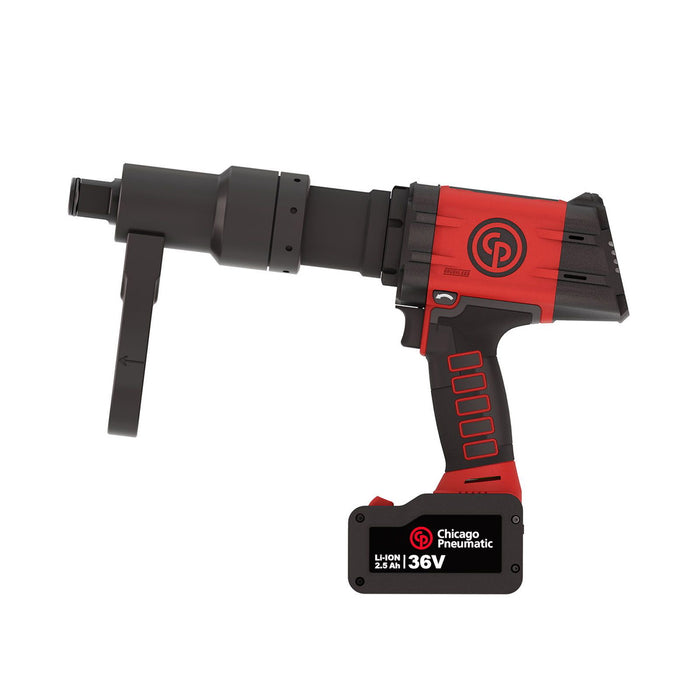

Chicago Pneumatic CP8609-CT, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570560
The Chicago Pneumatic CP8609-CT PACK delivers professional-grade cordless torque performance in a robust 1-inch drive configuration, making it an essential addition to any heavy-duty workshop or field service toolkit. Powered by a 36V 2.5Ah lithium-ion battery, this cp impact wrench combines the freedom of cordless operation with the raw muscle traditionally associated with pneumatic impact wrench technology, eliminating the need for compressors or airline connections without sacrificing torque output. Engineered with operator comfort firmly in mind, the CP8609-CT PACK achieves an impressively low sound pressure level of just 62 dB(A) and a sound power rating of 73 dB(A), well within the sub-83 dB(A) threshold that sets it apart from louder competitors in the chicago pneumatic impact wrench range. Vibration levels are kept to a minimum through precision engineering, with an uncertainty vibration-K value of just 0.6 m/s², reducing fatigue during extended use and supporting compliance with workplace health and safety standards. The cup trigger design ensures intuitive, responsive control across a variety of fastening applications, while the 1-inch drive provides the high-torque capability demanded by truck maintenance, heavy equipment servicing, and industrial assembly operations. Whether tackling large wheel nuts on commercial vehicles, loosening stubborn bolts on agricultural machinery, or working through demanding production line tasks, this 1 air impact gun delivers consistent, reliable performance across every shift.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 160 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.6 kg
- Weight without reaction arm: 5.6 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
