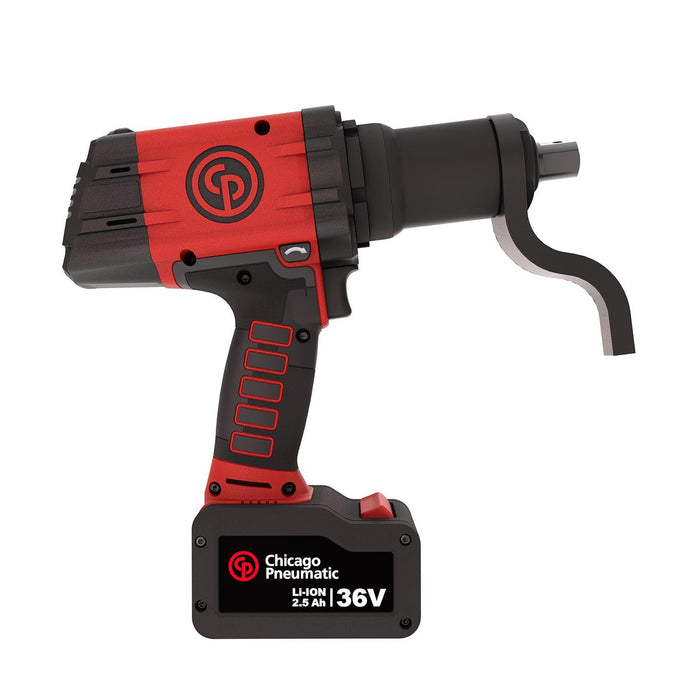

Chicago Pneumatic CP8603, 36V 3/4" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570380
The Chicago Pneumatic CP8603 PACK delivers professional-grade cordless torque performance for technicians who demand precision and reliability in demanding workshop environments. This 36V battery-powered torque wrench combines the trusted engineering of a chicago pneumatic impact wrench with the freedom of cordless operation, making it an exceptional alternative to traditional pneumatic impact wrench setups where compressed air lines are impractical or unavailable. Powered by a 36V, 2.5Ah battery system, the CP8603 PACK produces a controlled 110 Nm of torque output through its 3/4-inch drive, giving technicians accurate and repeatable fastening results across a wide range of applications. The tool operates at an impressively low sound power level of just 58.9 dB(A), well within the less-than-72 dB(A) threshold, creating a significantly quieter working environment compared to a conventional cp impact wrench or air impact gun. Vibration levels are rated below 2.5 m/s², reducing operator fatigue during extended use and supporting compliance with workplace health and safety standards. Built to withstand tough conditions, the unit supports a maximum ambient storage temperature of 60°C, ensuring reliable performance and battery longevity even in warm storage environments. The 3/4-inch drive makes it ideally suited for heavy vehicle servicing, truck maintenance, plant machinery assembly, and industrial fastening tasks where controlled torque delivery and operator comfort are equally important priorities.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About PartsForMachines: PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 13 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
-
- Sound Power (dba): <72
- Sound Power: 58.9 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 20 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 363 mm
- Width (W): 77 mm
- A: 28 mm
- B: 54 mm
- C: 91 mm
- D: 111 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 17 mm
- Power weight ratio: 110 Nm/kg
- Weight: 2.9 kg
- Weight without reaction arm: 2.9 kg
- Weight with reaction arm: 3.3 kg
- Max torque in forward: 325 Nm
- Max torque reverse: 325 Nm
- Min torque in forward: 70 Nm
- Recommended Torque: 260 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
