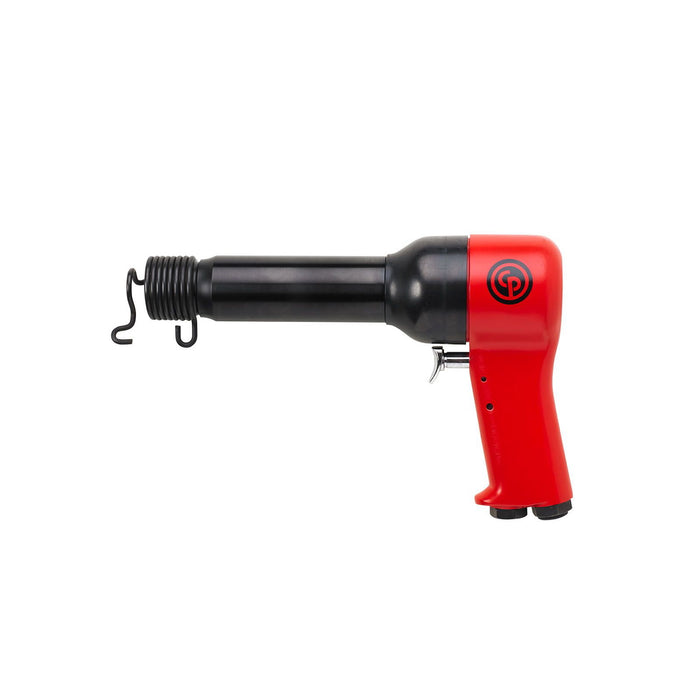

Chicago Pneumatic CP4287, Type 7X Air Rivet Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740640
The Chicago Pneumatic CP4287 Type 7X Rivet Hammer delivers the precise, controlled power that professional body shop technicians and aviation maintenance crews depend on for demanding riveting and chiselling applications. Engineered for durability and consistent performance, this chicago pneumatic air hammer is built to handle the rigours of daily industrial use without compromising operator comfort or accuracy. Connecting via a standard 1/4-inch air inlet thread, the CP4287 integrates seamlessly into existing workshop setups with minimal fuss. At free speed, the tool draws just 2.8 l/s of air consumption, making it an efficient choice for facilities mindful of compressor load and energy costs. Under Normo conditions, air consumption at free speed reaches 12.3 Nl/s, ensuring the hammer maintains responsive, steady operation throughout extended work cycles. The Type 7X classification designates this model as a purpose-designed rivet hammer, distinguishing it from general-purpose pneumatic chisel and air chisel hammer variants. Its compact, balanced design allows technicians to work in tight spaces - a critical advantage when navigating aircraft panels, automotive frames, or structural assemblies where access is restricted and precision is non-negotiable. Whether driving rivets in aerospace fabrication, breaking welds in collision repair, or tackling light chiselling tasks on metal surfaces, the CP4287 cp air hammer proves itself a reliable, productivity-enhancing tool for any professional workshop where downtime simply is not an option.Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminium and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at free speed (Normo): 12.3 1/sNl
- Air consumption at free speed: 2.8 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 114 dB(A)
- Sound Pressure: 103 dB(A)
- Uncertainty vibration-K: 4.7 m/s²
- Vibration: 26.3 m/s²
- Bore diameter: 19 mm
- Height (H): 160.3 mm
- Length (L): 256 mm
- Width (W): 63.5 mm
- Stroke: 98 mm
- Weight: 2.4 kg
- Blow per minute: 1140
- Chisel shank diameter (in): 0.498
- Chisel shank diameter (mm): 12.7
- Energy: 13 J
- Max rivet size aluminium (in): 5/16
- Max rivet size aluminium (mm): 7.9
- Max rivet size steel (in): 1/4
- Max rivet size steel (mm): 6.4
- Rivet hammer type: 7X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
