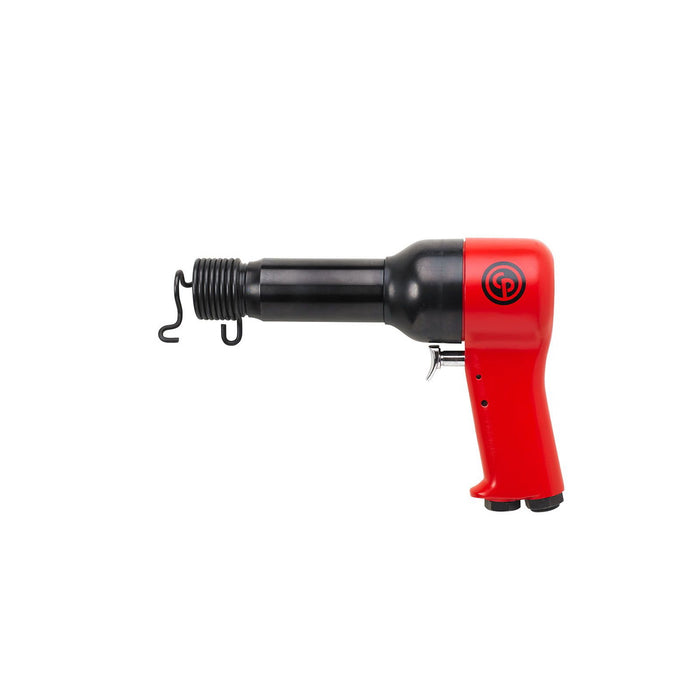

Chicago Pneumatic CP4285, Type 5X Air Rivet Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740630
The Chicago Pneumatic CP4285 Type 5X Rivet Hammer delivers the precision and power that professional bodywork, riveting, and metal shaping demand, making it a trusted choice for workshops and production environments where reliable performance cannot be compromised. Engineered for durability and consistent output, this cp air hammer combines a compact, ergonomic form with the kind of hard-hitting capability that reduces operator fatigue during extended use. At the heart of this pneumatic hammer is an efficient air consumption profile - drawing just 2.8 l/s at free speed with a normalised rating of 12.3 Nl/s - ensuring it delivers strong, consistent blows without placing unnecessary strain on the compressor supply. The standard 1/4-inch air inlet thread size means straightforward integration with existing workshop air lines and quick-connect fittings, keeping setup time to a minimum. Compatible with a wide range of tooling, the CP4285 functions effectively as an air chisel hammer, making it well suited to tasks such as cutting, chipping, scaling, and panel work. The pneumatic chisel capability extends its versatility further, allowing technicians to tackle rust removal, gasket breaking, and light riveting with equal confidence. The air chisel performance on this model makes it particularly valuable in automotive bodyshops, fabrication facilities, and maintenance operations where speed and adaptability matter. For professionals who need a dependable pneumatic hammer day in and day out, this tool delivers.Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminium and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at free speed (Normo): 12.3 1/sNl
- Air consumption at free speed: 2.8 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 113 dB(A)
- Sound Pressure: 102 dB(A)
- Uncertainty vibration-K: 4.5 m/s²
- Vibration: 24.7 m/s²
- Bore diameter: 19 mm
- Height (H): 160.3 mm
- Length (L): 230 mm
- Width (W): 63.5 mm
- Stroke: 68 mm
- Weight: 2.1 kg
- Blow per minute: 1600
- Chisel shank diameter (in): 0.498
- Chisel shank diameter (mm): 12.7
- Energy: 9 J
- Max rivet size aluminium (in): 1/4
- Max rivet size aluminium (mm): 6.4
- Max rivet size steel (in): 3/16
- Max rivet size steel (mm): 4.8
- Rivet hammer type: 5X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
