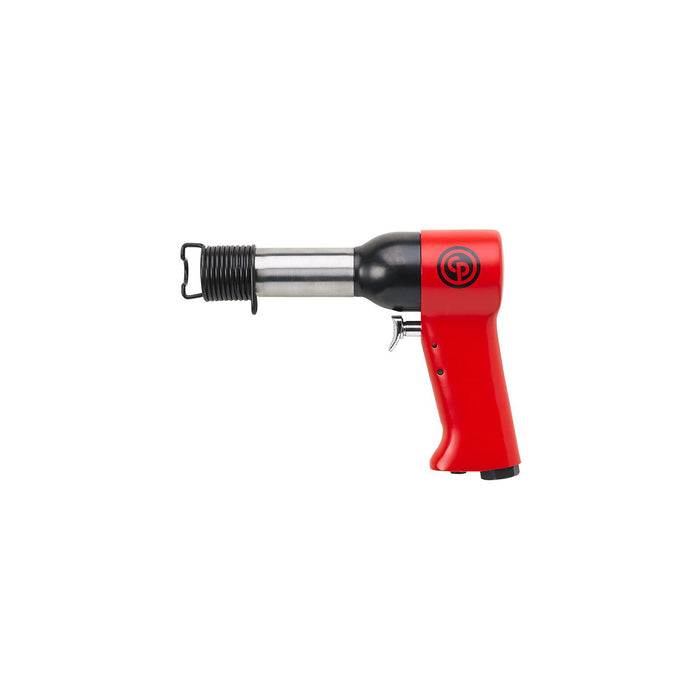

Chicago Pneumatic CP4283, Type 3X Air Rivet Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740610
The Chicago Pneumatic CP4283 Type 3X Rivet Hammer delivers the precision and raw striking power that professional bodywork technicians, fabricators, and aviation maintenance crews depend on to get the job done right. Built to chicago pneumatic air hammer standards that define reliability in demanding industrial environments, this lightweight yet capable pneumatic hammer handles riveting, chiselling, and panel shaping with consistent, controlled force across long working shifts. Connecting via a 1/4-inch air inlet thread, the CP4283 integrates seamlessly into standard workshop airline systems without the need for adapters or specialist fittings. At free speed, the tool draws just 1.9 l/s of air consumption, keeping compressor demand manageable even during continuous operation. The Normo-rated air consumption of 5.2 Nl/s ensures that performance figures align with real-world working conditions, giving operators confidence that what is specified is what is delivered on the shop floor. As a genuine cp air hammer from one of the most trusted names in pneumatic tooling, the CP4283 maintains the build quality and parts availability that reduces downtime and lowers total cost of ownership. Compatible Chicago Pneumatic replacement parts are stocked at MachineRefurb.com, making servicing straightforward. Whether used as an air chisel hammer for cutting and shaping sheet metal or as a dedicated rivet hammer in aerospace and coachbuilding applications, the CP4283 Type 3X is an enduring workhorse wherever controlled pneumatic impact is essential.Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminium and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at free speed (Normo): 5.2 1/sNl
- Air consumption at free speed: 1.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 3.1 m/s²
- Vibration: 11.7 m/s²
- Bore diameter: 12.7 mm
- Height (H): 142.8 mm
- Length (L): 186 mm
- Width (W): 50.8 mm
- Stroke: 73 mm
- Weight: 1.36 kg
- Blow per minute: 2160
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 4.3 J
- Max rivet size aluminium (in): 3/16
- Max rivet size aluminium (mm): 4.8
- Max rivet size steel (in): 5/32
- Max rivet size steel (mm): 4
- Rivet hammer type: 3X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
