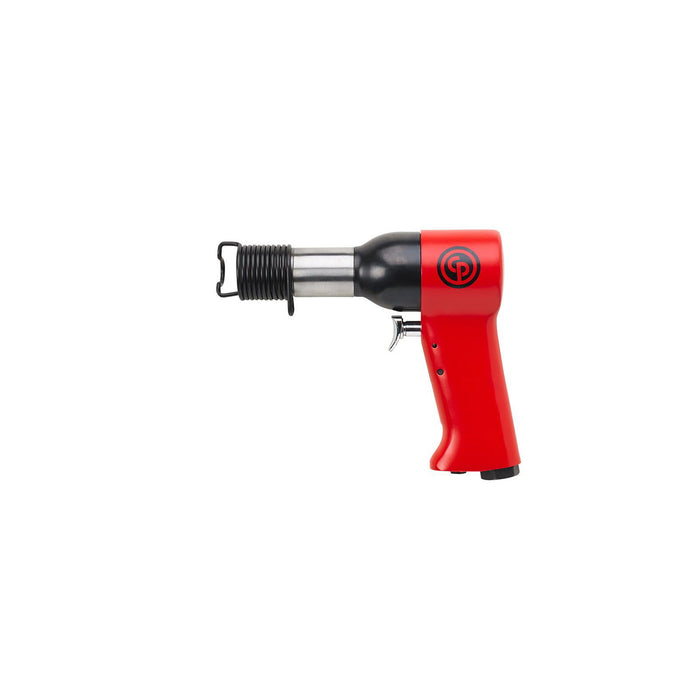

Chicago Pneumatic CP4282, Type 2X Rivet Hammer – 6151740600
Original price
£417.60
-
Original price
£417.60
Original price
£417.60
£417.60
-
£417.60
Current price
£417.60
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740600
Take advantage of the CP rivet hammers solution covering the most frequent riveting application in metal structure for aerospace. The CP42 rivet hammer series is defined by 7 models (1X,2X,3X,4X,5X,7X,9X) . Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminum and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO.
-
- Air consumption at free speed (Normo): 5.2 1/sNl
- Air consumption at free speed: 1.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 3 m/s²
- Vibration: 14 m/s²
- Bore diameter: 12.7 mm
- Height (H): 142.8 mm
- Length (L): 170 mm
- Width (W): 50.8 mm
- Stroke: 57 mm
- Weight: 1.26 kg
- Blow per minute: 2580
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 3.4 J
- Max rivet size aluminium (in): 1/8
- Max rivet size aluminium (mm): 3.2
- Max rivet size steel (in): 3/32
- Max rivet size steel (mm): 2.4
- Rivet hammer type: 2X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
