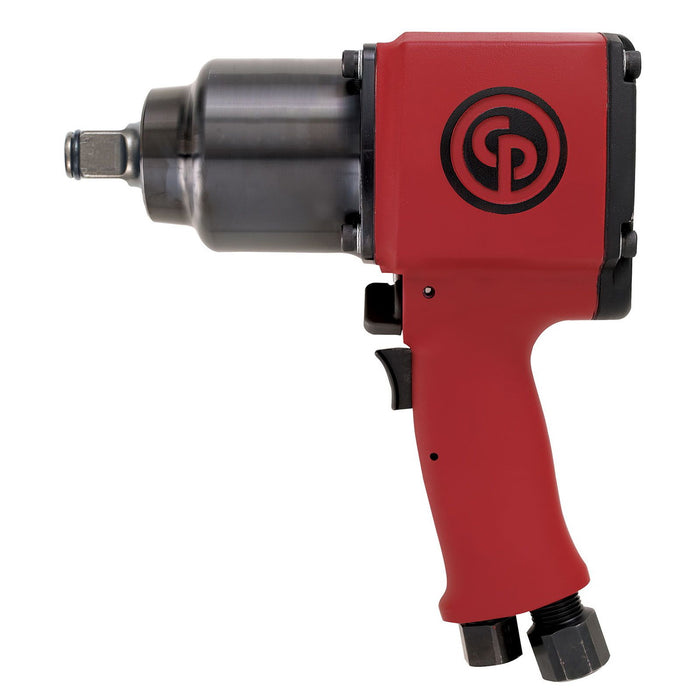

Chicago Pneumatic CP6060-P15R, 3/4" Pistol Impact Wrench, 1220 Nm Torque, 4000 Rpm Free Speed – 6151590100
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590100
The CP6060-70 series impact wrench features a 3/4" and 1" square drive, and delivers reverse torque up to 1490 Nm / 1100 ft.lb. Designed with the 2-jaw clutch mechanism, aluminium body, and steel clutch housing, it provides strength and compactness to work comfortably in the most demanding industrial environments. The CP0660-70 Series includes 3 models : 3/4" hole, 3/4" ring and 1" hole.Product Feature: A very compact design to meet applications in very tight environments Reliable 2-jaw clutch mechanism for hard and soft joint application Low vibration feeling for operator comfort even at very high torque. Aluminium body and robust steel clutch housing provides enhanced durability Hole type socket retainer with O-ring for safety
-
- Max working torque fwd: 1220 Nm
- Max torque reverse: 1490 Nm
- Min working torque fwd: 270 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 92 dB(A)
- Uncertainty vibration-K: 4.1 m/s²
- Free Speed: 4000 rpm
- Air consumption at free speed: 35 l/s
- Length (L): 222 mm
- Power weight ratio: 280 Nm/kg
- Side to Center: 37 mm
- Weight: 5.3 kg
- Blow per minute: 1100
- Body: Aluminum
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: 2-jaws
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
