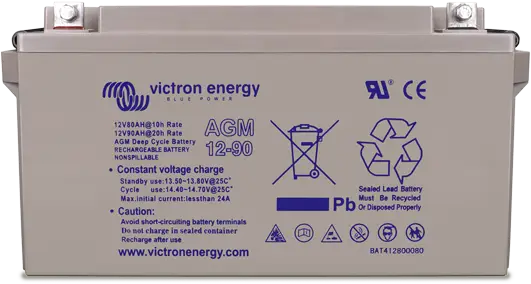

Victron Energy AGM Deep Cycle Battery 12V, 90Ah - BAT412800084, 2 Years Warranty

Original price £179.08 - Original price £179.08
Original price
£179.08
£179.08 - £179.08
Current price £179.08
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: BAT412800084

    Deep cycle applications demand a battery capable of sustained, high-current discharge without premature capacity loss - a requirement that standard starter batteries cannot reliably meet. The Victron Energy Blue Power AGM Deep Cycle Battery 12V 90Ah (BAT412800084) addresses this challenge directly, engineered for repeated deep discharge and recharge cycles in demanding off-grid, marine, and industrial environments. Manufactured to VRLA AGM specification, this battery employs absorbed glass mat technology to immobilise the electrolyte, eliminating acid stratification and significantly reducing self-discharge. Victron Energy's AGM design delivers very low internal resistance, making it particularly suitable for high-current discharge applications including inverters, bow thrusters, and winches. The design life is rated at 7-10 years under appropriate operating conditions." The battery measures 380mm x- 200mm - 230mm (L x- W x- H) and weighs 22.5 kg. Rated capacity is 90Ah at the C20 discharge rate. Polarity configuration should be verified against the product label prior to installation. No direct cross-reference is listed; confirm compatibility with your application before ordering. This product is available as a variant alongside BAT412101084 (PID000138946). Supplied with a 2-year manufacturer warranty against defects in materials and workmanship. " . VRLA AGM: design life 7-10 years VRLA GEL: design life 12 years The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches. The GEL model range offers best deep cycle durability and overall longer life. The use of high purity materials and lead calcium grids ensure that for both AGM and GEL products have particularly low self-discharge so that they will not go flat during long periods without charge. Both ranges are supplied with M8 drilled, flat copper terminals ensuring best possible connection contact and eliminating the need for battery terminals. The batteries are compliant with both CE and UL specifications in ABS fireproof containers and come with Victron's 2 year world-wide warranty. Key Feature: Backed by 2-year warranty for reliable use and dependable performance. Product Group: 4702, VICTRON BATTERIES, purpose-built for dependable performance in the intended application. Engineered as a AGM Battery, delivering consistent, reliable operation in daily use. Manufactured by Victron Energy, a trusted name in automotive batteries, known for dependable quality. Weighs 22.5 kg (49.6 lb) balancing power and manageability for easier installation and handling. OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatible with standard vehicle electrical requirements. Compatibility: Designed for Off-Grid applications, balancing dependable starting with steady power delivery. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to AGM Battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.

    • Brand: Victron Energy Blue Power
    • Voltage: 12V
    • Capacity AH (C20): 90Ah
    • Cold Cranking Amps (EN):
    • L x- W x- H: 380mm x- 200mm x- 230mm
    • Warranty period: 2 Years
    • Weight (Kg): 22.5
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 380
    • Width (mm): 200
    • Height Inc. Terminal (mm): 230
    • Terminal Placement:
    • Terminal Type:
    • Hold Down:
    • Case Size:
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the rated capacity of the Victron Energy BAT412800084 battery?
ANS- The battery is rated at 90Ah measured at the C20 discharge rate, meaning it will deliver that capacity when discharged fully over a 20-hour period under standard test conditions.

Q2- What voltage is this Victron Energy AGM battery?
ANS- This battery operates at a nominal 12V, making it compatible with standard 12-volt DC systems used in marine, off-grid, and industrial applications.

Q3- What is the polarity configuration of the BAT412800084?
ANS- Polarity is not pre-specified for this model. You must verify the positive and negative terminal positions against the label on the physical product before installation.

Q4- What are the physical dimensions and weight of this battery?
ANS- The battery measures 380mm in length, 200mm in width, and 230mm in height including terminals. It weighs 22.5 kg.

Q5- What is the design life of the Victron Energy AGM Deep Cycle battery?
ANS- Under appropriate operating and charging conditions, the VRLA AGM design life is rated at 7-10 years.

Q6- Why is this battery described as suitable for high-current discharge applications?
ANS- The AGM construction results in very low internal resistance. This allows the battery to deliver sustained high currents with minimal voltage drop, making it well suited to inverters, bow thrusters, winches, and similar loads.

Q7- Is the BAT412800084 compatible with start-stop vehicle systems?
ANS- The AGM technology used in this battery is broadly capable of supporting start-stop operation. However, you must verify compatibility against the specific requirements stated on the product label before use in a start-stop application.

Q8- What is the warranty period for the Victron Energy BAT412800084?
ANS- This battery is supplied with a 2-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Q9- Are there variant or alternative models available for this battery?
ANS- Yes. A listed variant is BAT412101084 (PID000138946). If that model does not meet your requirements, please contact MachineRefurb to discuss alternative options.

Q10- What are the delivery and returns terms for the BAT412800084?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies Shipping timescales for non-mainland locations may differ; please contact us prior to ordering for confirmation.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 2-year warranty from the date of purchase.
