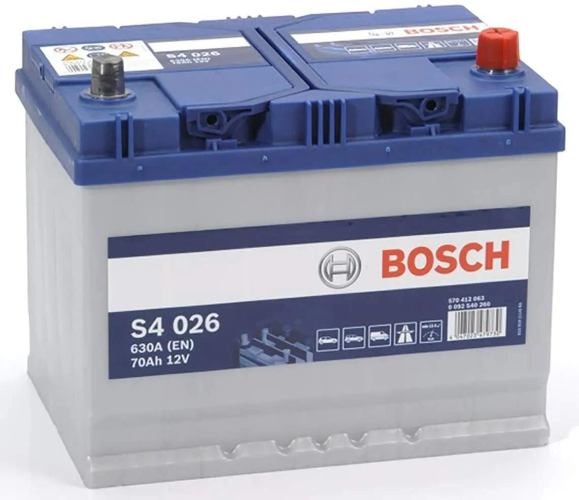

S4 026 Bosch Car Battery 12V 70Ah Type 068 - 570412063, 4 Years Warranty

Original price £94.19 - Original price £94.19
Original price
£94.19
£94.19 - £94.19
Current price £94.19
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4026

    Maintaining reliable cold-weather starting performance in high-demand conventional vehicles requires a battery engineered to OEM tolerances with robust cycle endurance. The Bosch S4026 is a 12V 70Ah lead-acid starter battery designed for passenger cars and light commercial vehicles that do not feature start-stop systems, delivering 630A cold cranking amps (EN) to ensure dependable engine ignition across a wide range of operating temperatures. Manufactured within the Bosch S4 range, the S4026 employs full frame grid technology, which maximises the active material contact area across the plate structure to improve charge acceptance and prolong service life. The flushed battery cover design minimises the risk of acid leakage, while robust integrated handles facilitate safe handling during installation and replacement. The S4026 fits applications specifying a Type 068 battery. Physical dimensions are 260mm (L) x- 173mm (W) x- 225mm (H including terminal). The battery uses a Terminal 1 (positive right) configuration with negative polarity code 0, and is secured via B01 hold-down clamp. Cross-reference: 068, 570412063. This product is available across the broader Bosch S4 range in multiple capacities and footprints; alternative SKUs include S4007, S4008, S4009, S4010, S4011, S4013, S4027, S4028, and S4029 to suit differing vehicle requirements." The S4026 is covered by a 4-year manufacturer warranty against defects in materials and workmanship. " . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 70Ah
    • Cold Cranking Amps (EN): 630A
    • L x- W x- H: 260mm x- 173mm x- 225mm
    • Warranty period: 4 Years
    • Weight (Kg): 16.5466666666667
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 260
    • Width (mm): 173
    • Height Inc. Terminal (mm): 225
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B01
    • Case Size:
    • ETN Number: 570412063
    • TTNR: 0092S40260
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What are the dimensions of the Bosch S4026 battery?
ANS- The Bosch S4026 measures 260mm in length, 173mm in width, and 225mm in height including the terminal. Always verify these dimensions against your vehicle's battery tray before ordering.

Q2- What is the cold cranking amp (CCA) rating of the S4026?
ANS- The Bosch S4026 is rated at 630A cold cranking amps (CCA) measured to the EN standard, providing reliable engine starting performance in cold ambient conditions.

Q3- Which terminal configuration does the Bosch S4026 use?
ANS- The S4026 uses a Terminal 1 layout, which positions the positive terminal on the right-hand side when viewed from the front. The polarity code is 0. Confirm your vehicle's terminal requirements before purchase.

Q4- Is the Bosch S4026 compatible with start-stop vehicles?
ANS- No. The S4026 is a standard lead-acid battery and is not suitable for vehicles fitted with start-stop (micro-hybrid) systems. For start-stop applications, an AGM or EFB battery is required.

Q5- What hold-down clamp does the S4026 require?
ANS- The Bosch S4026 uses a B01 hold-down clamp type. Ensure your vehicle's battery retention system is compatible with this specification prior to fitment.

Q6- What cross-reference codes apply to the Bosch S4026?
ANS- The S4026 cross-references to Type 068 and carries the manufacturer part number 570412063. These codes can be used to verify fitment against your vehicle manufacturer's battery specification.

Q7- What warranty does the Bosch S4026 carry?
ANS- The Bosch S4026 is covered by a 4-year manufacturer warranty against defects in materials and workmanship under normal operating conditions.

Q8- What technology does the Bosch S4 range use?
ANS- The Bosch S4 range uses full frame grid technology, which increases the contact area between the plate grid and active material. This improves charge acceptance and contributes to a longer service life compared with standard partial-frame grid designs.

Q9- Are there other capacities available in the Bosch S4 range?
ANS- Yes. The Bosch S4 range includes multiple SKUs across varying capacities and footprints, including S4007, S4008, S4009, S4010, S4011, S4013, S4027, S4028, and S4029. Contact MachineRefurb to identify the correct variant for your application.

Q10- What are the delivery and returns terms for the Bosch S4026?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies For full terms, please refer to the MachineRefurb delivery and returns policy pages.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
