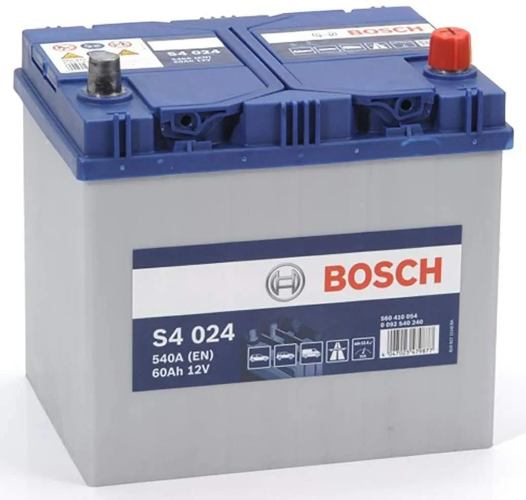

S4 024 Bosch Car Battery 12V 60Ah Type 005L - 560410054, 4 Years Warranty

Original price £79.81 - Original price £79.81
Original price
£79.81
£79.81 - £79.81
Current price £79.81
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4024

    Selecting the correct replacement battery for a vehicle with conventional ignition demands a product that meets OEM electrical specifications without compromise. The Bosch S4024 is a 12V, 60Ah lead-acid car battery rated at 540 CCA (EN), engineered to deliver a reliable and powerful start across a broad range of standard petrol and diesel passenger vehicles. It is not suitable for start-stop applications. Manufactured under the Bosch S4 range, the S4024 employs full frame grid technology, which improves the active material adhesion within each cell and extends overall cycle life. Flushed battery covers minimise the risk of acid spillage during installation and transit, while robust carry handles allow for safe single-person handling. The design is produced in compliance with OEM requirements, ensuring direct compatibility with vehicles originally fitted with equivalent factory batteries. The S4024 occupies a case measuring 232mm (L) x- 173mm (W) x- 225mm (H, including terminal). It is fitted with a Type 1 terminal post and carries polarity designation 0 (positive terminal on the left). The hold-down type is B00. It cross-references directly to the 005L battery type, making it a verified replacement for vehicles specifying that fitment code - including cross-references to the Numax 005L and equivalent 005L-coded batteries from other brands. The S4024 is one of ten variants within the Bosch S4 range available on MachineRefurb, spanning SKUs S4000 through S4022 to cover a wide spread of vehicle fitments by capacity, CCA, and case size." This battery is covered by a 4-year manufacturer warranty against defects in materials and workmanship. " . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 60Ah
    • Cold Cranking Amps (EN): 540A
    • L x- W x- H: 232mm x- 173mm x- 225mm
    • Warranty period: 4 Years
    • Weight (Kg): 14.6222222222222
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 232
    • Width (mm): 173
    • Height Inc. Terminal (mm): 225
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B00
    • Case Size:
    • ETN Number: 560410054
    • TTNR: 0092S40240
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What are the key specifications of the Bosch S4024 battery?
ANS- The Bosch S4024 is a 12V lead-acid car battery with a capacity of 60Ah (C20) and a Cold Cranking Amp (CCA) rating of 540A measured to EN standard. It weighs approximately 14.6 kg and measures 232mm (L) — 173mm (W) — 225mm (H, including terminal).

Q2- What is the cross-reference code for the Bosch S4024, and what batteries does it replace?
ANS- The S4024 cross-references to battery type 005L. It is a verified direct replacement for vehicles specifying a 005L fitment, including the Numax 005L and other batteries sold under the 005L type designation.

Q3- Is the Bosch S4024 compatible with start-stop vehicles?
ANS- No. The Bosch S4024 is a standard lead-acid battery and is not suitable for vehicles equipped with start-stop (idle stop) systems. For start-stop applications, an AGM or EFB battery from the Bosch S5A or equivalent range is required.

Q4- What terminal type and polarity does the S4024 use?
ANS- The S4024 is fitted with Type 1 terminal posts. Its polarity designation is 0, meaning the positive terminal is positioned on the left-hand side when viewed from the front of the battery.

Q5- What hold-down type does the Bosch S4024 use?
ANS- The Bosch S4024 uses hold-down type B00, which refers to the base ledge configuration used to secure the battery within the vehicle's battery tray. Confirm your vehicle's hold-down bracket matches B00 before fitting.

Q6- What technology does the Bosch S4 range use, and what are the benefits?
ANS- The Bosch S4 range uses full frame grid technology, which enhances active material adhesion within each cell, resulting in improved cycle durability and a longer service life compared to partial-frame alternatives. Flushed battery covers reduce acid spillage risk, and robust carry handles aid safe installation.

Q7- What warranty does the Bosch S4024 carry?
ANS- The Bosch S4024 is backed by a 4-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Q8- Are there other sizes available in the Bosch S4 range on MachineRefurb?
ANS- Yes. The Bosch S4 range on MachineRefurb includes multiple variants - from S4000 through to S4022 - covering a broad spread of capacities, CCA ratings, and case sizes to suit different vehicle fitments. Use the range filter or consult the vehicle lookup tool to identify the correct SKU for your application.

Q9- How does the Bosch S4024 compare to similar batteries such as the Exide EA530 or EA640?
ANS- The S4024 occupies the same broad market segment as batteries such as the Exide EA530, EA612, and EA640. The correct choice depends on your vehicle's specified type code, terminal configuration, and CCA requirement. Always verify the fitment using your vehicle's battery type code before purchasing.

Q10- What are the delivery and returns terms for the Bosch S4024?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies For remote locations or non-mainland UK destinations, please check the delivery information on the MachineRefurb website prior to ordering.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
