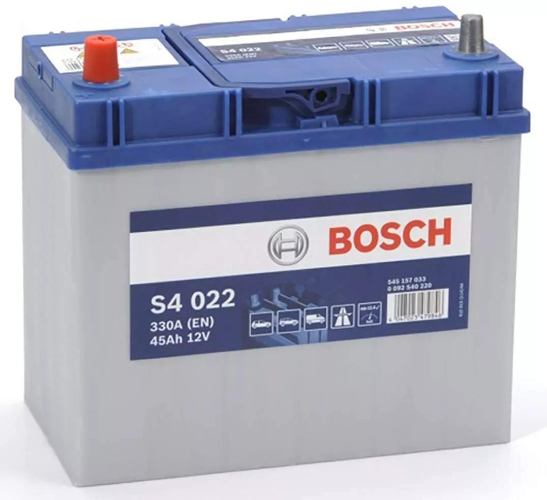

S4 022 Bosch Car Battery 12V 45Ah Type 043 - 545157033, 4 Years Warranty

Original price £69.10 - Original price £69.10
Original price
£69.10
£69.10 - £69.10
Current price £69.10
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4022

    Reliable cold-weather starting performance is a persistent challenge for conventional vehicles, particularly in lower temperatures where battery output diminishes. The Bosch S4022 is a 12V 45Ah lead-acid starter battery engineered to meet those demands with consistent, dependable power delivery across a broad range of petrol and diesel passenger cars. Manufactured to Bosch OEM-grade standards, the S4 range employs full frame grid technology that maximises the active material contact area within each cell, reducing internal resistance and improving charge acceptance. Flushed battery covers minimise the risk of acid spillage during installation and in service, while robust carry handles ensure safe handling throughout. The S4022 is dimensioned at 238mm x- 129mm - 227mm (L x- W x- H) and delivers 330A Cold Cranking Amps (EN) at 12V with a 45Ah capacity (C20). It is fitted with a Type 3 terminal and polarity configuration 1 (positive terminal left), with a B00 hold-down base. This battery cross-references against 155 OEM and aftermarket part numbers. It is not suitable for start-stop vehicles. The S4 range is available in multiple capacities to suit a wide variety of vehicle applications; see variant SKUs S4000, S4001, S4002, S4004, S4005, S4018, S4019, S4020, S4021, and S4023 for alternative fitments. This battery is supplied with a 4-year warranty, reflecting Bosch's confidence in the long service life of the S4 range. . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 45Ah
    • Cold Cranking Amps (EN): 330A
    • L x- W x- H: 238mm x- 129mm x- 227mm
    • Warranty period: 4 Years
    • Weight (Kg): 11.43
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 238
    • Width (mm): 129
    • Height Inc. Terminal (mm): 227
    • Terminal Placement: 1
    • Terminal Type: 3
    • Hold Down: B00
    • Case Size:
    • ETN Number: 545157033
    • TTNR: 0092S40220
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What vehicle types is the Bosch S4022 suitable for?
ANS- The S4022 is designed for conventional petrol and diesel passenger cars that do not feature start-stop technology. It is not suitable for vehicles with start-stop, EFB, or AGM battery requirements.

Q2- Is the Bosch S4022 compatible with start-stop vehicles?
ANS- No. The S4022 is a standard lead-acid battery and is not suitable for start-stop vehicles. Vehicles with start-stop systems require an EFB or AGM battery of the correct specification.

Q3- What are the dimensions of the Bosch S4022?
ANS- The S4022 measures 238mm in length, 129mm in width, and 227mm in height including the terminal. Always verify that these dimensions are compatible with your vehicle's battery tray before ordering.

Q4- What is the Cold Cranking Amps (CCA) rating of the S4022?
ANS- The Bosch S4022 is rated at 330A Cold Cranking Amps to EN standard, providing reliable engine starting performance in cold conditions.

Q5- Which terminal type and polarity does the S4022 use?
ANS- The S4022 uses a Type 3 terminal with polarity configuration 1, meaning the positive terminal is positioned on the left when viewed from the front of the battery. Confirm this matches your vehicle's cable layout before installation.

Q6- How many OEM and aftermarket part numbers does the S4022 cross-reference to?
ANS- The Bosch S4022 cross-references to 155 OEM and aftermarket part numbers, including the OEM reference 545157033. Use your vehicle registration or existing part number to confirm fitment.

Q7- What warranty is provided with the Bosch S4022?
ANS- The S4022 is supplied with a 4-year warranty, covering manufacturing defects under normal use conditions. Refer to Bosch's warranty terms for full details.

Q8- Are there other capacity variants available in the Bosch S4 range?
ANS- Yes. The Bosch S4 range includes multiple variants to suit different vehicle requirements. Alternative SKUs available on MachineRefurb include S4000, S4001, S4002, S4004, S4005, S4018, S4019, S4020, S4021, and S4023.

Q9- What technology does the Bosch S4 battery use to ensure reliable performance?
ANS- The Bosch S4 uses full frame grid technology, which maximises contact between the grid and active material within each cell. This reduces internal resistance, improves charge acceptance, and contributes to a longer service life compared to standard grid designs.

Q10- What are the delivery and returns terms for the Bosch S4022?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies For delivery to non-mainland UK addresses, please contact MachineRefurb prior to ordering.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.

Grade: New
