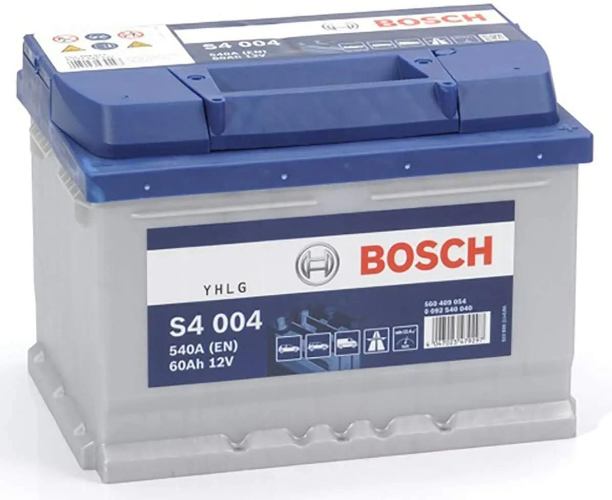

S4 004 Bosch Car Battery 12V 60Ah Type 075 - 560409054, 4 Years Warranty

Original price £81.25 - Original price £81.25
Original price
£81.25
£81.25 - £81.25
Current price £81.25
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: S4004

    Reliable cold-weather starting performance is a persistent challenge for conventional petrol and diesel vehicles, particularly during the winter months when cranking demand is at its highest. The Bosch S4004 is a 12V 60Ah lead-acid starter battery engineered to meet that demand, delivering 540 Cold Cranking Amps (EN) and consistent, dependable power in line with OEM requirements for a broad range of standard passenger cars and light commercial vehicles. Manufactured using Bosch's full frame grid technology, the S4004 benefits from a robust internal structure that enhances conductivity and extends cycle life. Flushed battery covers minimise the risk of acid spillage during installation and use, whilst the integrated carry handles allow for safe and straightforward handling. The S4 range is positioned as a reliable mid-tier solution, balancing performance and value for vehicles without advanced energy management or start-stop systems. The S4004 measures 242mm (L) x- 175mm (W) x- 175mm (H) and weighs 13.59kg. It features Terminal Type 1 with polarity 0 (positive terminal on the left), and is secured via hold-down type B13. This battery is a direct Type 075 fitment and cross-references to OEM code 560409054, making it a verified replacement for a wide range of popular vehicle applications. It is not suitable for start-stop, EFB, or AGM-equipped vehicles. The S4004 is part of the broader Bosch S4 range, which includes variants S4000, S4001, S4002, S4005, S4018, S4019, S4020, S4021, S4022, and S4023, covering capacities and dimensions to suit differing vehicle requirements. This battery is supplied with a 4-year manufacturer warranty, providing assurance of long-term reliability and performance under normal operating conditions. . The Bosch S4 Battery ensures a powerful start for all types of vehicles and offers long service life, flushed tops for minimized risk of acid leakage, and dependable power in accordance with OEM requirements. It uses full frame grid technology, highly protective pocket separators and robust connections inside to extend lifetime and maximize reliability. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Robust handles for easy and safe installation and transportation. Flushed battery covers that minimize the risk of spilled acid which can destroy terminal posts, battery cover and surroundings of the battery in a vehicle. Full frame grid - for optimum current flow and reduced corrosion. Compatibility: Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Bosch
    • Voltage: 12V
    • Capacity AH (C20): 60Ah
    • Cold Cranking Amps (EN): 540A
    • L x- W x- H: 242mm x- 175mm x- 175mm
    • Warranty period: 4 Years
    • Weight (Kg): 13.59
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 242
    • Width (mm): 175
    • Height Inc. Terminal (mm): 175
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size:
    • ETN Number: 560409054
    • TTNR: 0092S40040
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amp (CCA) rating of the Bosch S4004?
ANS- The Bosch S4004 has a Cold Cranking Amp (CCA) rating of 540A measured to the EN standard, making it well suited to reliable cold-weather starting in standard petrol and diesel vehicles.

Q2- What are the dimensions and weight of the Bosch S4004 battery?
ANS- The Bosch S4004 measures 242mm in length, 175mm in width, and 175mm in height (including terminal). It weighs 13.59kg.

Q3- Which terminal type and polarity does the Bosch S4004 use?
ANS- The S4004 uses Terminal Type 1 with polarity 0, meaning the positive terminal is positioned on the left-hand side when viewing the battery from the front. The hold-down type is B13.

Q4- What vehicle type fitment does the Bosch S4004 correspond to?
ANS- The S4004 is a Type 075 fitment battery, suitable for a wide range of standard petrol and diesel passenger cars and light commercial vehicles. It cross-references to OEM code 560409054.

Q5- Is the Bosch S4004 compatible with start-stop vehicles?
ANS- No. The Bosch S4004 is a standard lead-acid starter battery and is not suitable for vehicles equipped with start-stop technology, EFB systems, or AGM battery configurations. Please select an appropriate EFB or AGM battery for those applications.

Q6- What warranty is provided with the Bosch S4004?
ANS- The Bosch S4004 is supplied with a 4-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Q7- Does the Bosch S4004 replace a Lucas 075 battery?
ANS- The Bosch S4004 is a Type 075 battery and is a recognised cross-reference replacement for Lucas 075 and other batteries sharing the 075 fitment specification, provided terminal placement and hold-down requirements are compatible with your vehicle.

Q8- What technology does the Bosch S4 range use?
ANS- The Bosch S4 range uses full frame grid technology, which improves electrical conductivity and structural integrity. The battery also features flushed covers to minimise acid spillage risk and integrated carry handles for safe handling.

Q9- Are there other capacity options available in the Bosch S4 range on MachineRefurb?
ANS- Yes. The Bosch S4 range on MachineRefurb includes multiple variants: S4000, S4001, S4002, S4005, S4018, S4019, S4020, S4021, S4022, and S4023, covering a range of capacities and fitments for different vehicle requirements.

Q10- What are the delivery and returns terms for the Bosch S4004?
ANS- Standard delivery is 1-7 working days. A 14-day returns policy applies Please refer to the MachineRefurb returns policy for full terms and conditions.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
